Abstract Movement Design for Non-Humanoid Robots: Opening, Closing, and Turn-Taking Gestures

1. Introduction

As robots are increasingly deployed in service domains, their social ability to engage in natural conversation has become essential. Recent advances in large language models have significantly enhanced robots’ verbal communication capabilities, enabling more coherent and contextually appropriate dialogue (Kim et al., 2024; Mahadevan et al., 2024). These improvements in verbal fluency have consequently raised user expectations for complementary nonverbal expressions in robotic interfaces. However, non-humanoid robots face inherent limitations in nonverbal expression due to physical constraints, including a lack of anthropomorphic features and low degrees of freedom (DoF) (Rosenthal-von der Pütten et al., 2018). Importantly, these constraints extend beyond robots to include future intelligent products, as smart appliances and assistant devices.

Current research in robotic nonverbal expression has predominantly focused on mimicking human gestures, such as head gestures (Lee & Hahn, 2025), eye gazing (Kompatsiari et al., 2021), body posture (Tuyen et al., 2020), and facial expression (Hu et al., 2024). While these studies have demonstrated the positive impact of anthropomorphic gestures on social interaction, directly translating such expressions to non-humanoid platforms presents significant implementation challenges.

Previous studies have explored how minimal, robot-specific movements can convey social meaning in non-humanoid platforms. Anderson-Bashan et al. (2018) showed that even an abstract robotic object can express positive or negative opening encounters through minimal ball rolling movement. Another study on low-anthropomorphic robots has demonstrated that subtle gaze shifts can significantly influence social engagement during guidance tasks (Zaga et al., 2017). However, despite previous research, a significant gap remains in understanding how such non-humanoid movements can function as conversational grounding cues, which are fundamental mechanisms for establishing and maintaining mutual understanding in interaction.

This study addresses this gap by investigating how minimal abstract movements can effectively function as conversational grounding cues, including opening, closing, and turn-taking cues. By focusing on low-anthropomorphic expressiveness, this study aims to explore non-humanoid gestures that serve as appropriate social grounding cues in conversational contexts. This approach broadens the scope of nonverbal design for constrained robotic embodiments by focusing on simple motion-based expressiveness rather than relying exclusively on humanoid-centric approaches.

This study contributes not only by demonstrating that minimal abstract movement can support conversational grounding in HRI, but also by clarifying how different movement types can play different roles in interaction. In this regard, the contribution extends beyond reporting statistically significant condition effects to offering implications for designing movement based interaction in constrained robotic embodiments.

2. Background

3. Design and Hypotheses

To explore how minimal non-humanoid movements can function as conversational grounding cues, we designed abstract gestures by extracting key communicative patterns from human head and gaze behavior and translating them into simple vertical or lateral motions feasible for low-DoF robots. The robot’s spherical component served as the primary expressive element, with movements across three vertical reference zones: action, standby, and sleeping zones (Figure 1). Opening was expressed through vertical upward motion followed by a rapid return to the standby zone. Closing was expressed as a downward shift toward the sleeping zone. For turn-requesting movement, the spherical component moves vertically upward from the standby zone to the action zone. For turn-holding movement, it maintains position in the action zone. For turn-yielding movement, it moves downward to the standby zone. Pointing was expressed as lateral rotation toward the target object.

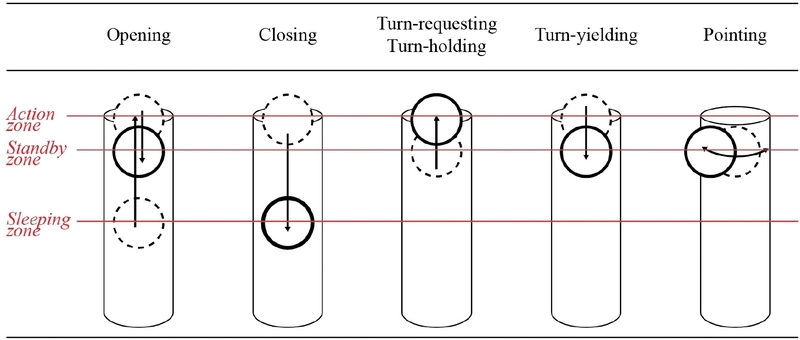

Figure 1

Abstract movements designed in this study

We evaluated the appropriateness of these abstract movements through the experiment according to the following hypotheses:

H1: The abstract movements can appropriately represent expressive gestures: opening (H1a), closing (H1b), turn-requesting and turn-holding (H1c), turn-yielding (H1d), and pointing (H1e).

Pointing movements were included in all conditions as the control movement, as their effects on joint attention have been established in previous studies (Sauppé & Mutlu, 2014; Zaga et al., 2017). Three experimental movement conditions were designed: pointing-only (A), pointing + opening and closing (B), and pointing + turn-taking (C). We hypothesized that opening and closing movements would enhance social engagement and positive affect.

H2: Condition B will increase participants’ perceptions of engagement (H2a) and likeability (H2b) compared to Condition A.

Because turn-taking cues can reduce social errors in human-robot conversation (Tian & Oviatt, 2021) and enable the robot to respond more frequently to participants’ speech, we hypothesized that Condition C would significantly improve participants’ perceptions and reduce task time and social errors.

H3: Condition C will increase participants’ perceptions of engagement (H3a), likeability (H3b), intelligence (H3c), and fluency (H3d) compared to other conditions.

H3-1: Condition C will reduce participants’ task completion time compared to other conditions.

H3-2: Condition C will reduce conversational overlaps compared to other conditions.

3. 1. Implementation

A robotic prototype was designed with a minimal geometric configuration consisting of cylindrical and spherical components. A microcontroller unit and two servo motors were integrated into the cylindrical body, implementing vertical movement and lateral rotation. The robot dimensions are: height of 350 mm, width of 100 mm, depth of 155 mm, and spherical component diameter of 50 mm. Figure 2 shows the mechanical configuration and components of the prototype. The robot was operated using the Wizard of Oz technique.

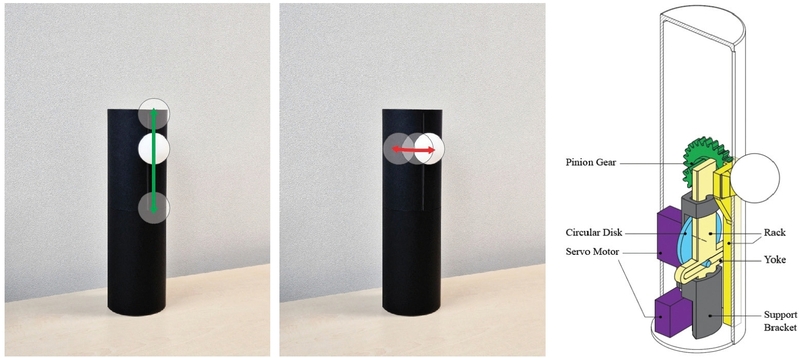

Figure 2

Prototype mechanism used in the experiment

4. Experiment

4. 2. Design and Procedure

Participants were randomly assigned to one of three movement conditions, with 10 participants per condition. Due to a technical issue with the prototype, one participant’s data were excluded, resulting in a final distribution of 9 participants in Condition A, 10 in Condition B, and 10 in Condition C. The distance was set at 0.5-0.7 meters between a participant and the robot. To simulate a service context, participants were asked to talk with the robot following a provided dialog script and were given a small task to pick up a specific tea bag from the table. Figure 3 illustrates the experimental setup.

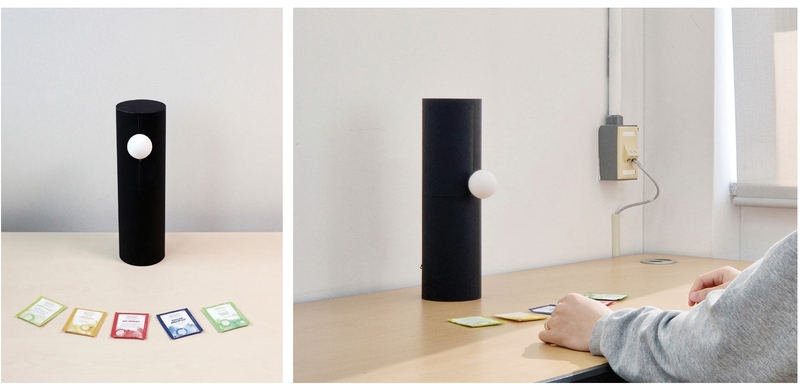

Figure 3

Experimental setting

The interaction proceeded as follows: The robot says, “Hi, do you need any help?” The participant responds, “Which tea bag tastes good?” The robot responds, “I would recommend the tea flavor. How about chamomile tea?” (with a two-second pause). The participant says, “I like chamomile.” The robot performs the pointing movement and asks, “Please pick up the yellow tea bag.” After the participant picks up the tea bag, the robot says, “That is chamomile tea. Enjoy your tea time.”

In Condition A, the robot performed pointing only. In Condition B, the robot performed opening, closing, and pointing movements. In Condition C, the robot performed turn-requesting, turn-holding, turn-yielding, and pointing movements.

To standardize the interaction across participants, the verbal content was kept constant across conditions and participants. The robot was operated using a Wizard of Oz procedure, in which the experimenter used a remote controller to trigger a predefined set of movement and utterance outputs. Each condition was programmed in advance so that the corresponding movement and utterance were linked as a single response unit. Following each participant response, the experimenter triggered the robot’s next response according to the predefined sequence. This procedure maintained a consistent interaction structure across participants while allowing the robot’s responses to follow participant utterances at the appropriate moment. The robot’s utterance was standardized using the same TTS settings across all participants and conditions. To examine differences in conversational overlap across conditions, the two-second pause in the turn-taking condition was embedded in the corresponding audio file together with the associated movement.

5. Results

5. 3. Reliability

Cronbach’s alpha was calculated to assess the internal consistency of participants’ responses to engagement, likeability, perceived intelligence, and fluency. The results indicated that all measures were acceptable. Cronbach’s alpha values for each measure are presented in Table 1.

Table 1

Internal consistency of measures in the experiment

5. 4. Participants’ Perceptions

A one-way MANOVA revealed a significant multivariate effect, F(8, 46) = 32.75, p < .001. Figure 4 illustrates the differences of effects of robot movements on participants’ perceptions. Participants reported higher engagement in Condition B (M = 6.30, SD = 0.37) than in Condition A (M = 4.50, SD = 0.52) and Condition C (M = 5.60, SD = 0.61). For likeability, Condition B (M = 6.50, SD = 0.37) was rated higher than Condition A (M = 4.62, SD = 0.44) and Condition C (M = 5.46, SD = 0.31). However, participants reported higher perceived intelligence in Condition C (M = 6.02, SD = 0.52) than Condition A (M = 4.40, SD = 0.33) and Condition B (M = 5.02, SD = 0.33). Participants also reported higher fluency in Condition C (M = 6.23, SD = 0.35) than in Condition A (M = 4.56, SD = 0.37) and Condition B (M = 5.37, SD = 0.87).

Figure 4

Comparison of participants’ perception mean scores for robot movements (A: pointing-only, B: pointing + opening and closing, C: pointing + turn-taking)

Tukey HSD post hoc tests revealed significant differences. For engagement, Condition B showed higher ratings than Condition A (p < .001) and Condition C (p = .013). Condition C was significantly higher than A (p < .001). For likeability, Condition B received greater ratings than Condition A (p < .001) and Condition C (p < .001). Condition C was significantly higher than Condition A (p < .001). For perceived intelligence, Condition C was rated above both Condition A (p < .001) and Condition B (p < .001). Condition B also exceeded Condition A (p = .007). For fluency, Condition C scored higher than Condition A (p < .001) and Condition B (p = .008). Condition B was significantly higher than Condition A (p = .016).

Because Levene’s test indicated unequal variances for fluency, a Welch ANOVA was additionally conducted as a robustness check. The result remained significant, Welch’s F(2, 16.272) = 48.539, p < .001. Games–Howell post hoc comparisons also showed significant differences among all three conditions (A vs. B, p = .047; A vs. C, p < .001; B vs. C, p = .032), supporting the same overall conclusion.

5. 5. Task Completion Time

A one-way ANOVA revealed a significant effect of condition on task completion time, F(2, 26) = 6.58, p = .005. Participants in Condition C (M = 1.30, SD = 0.41) had shorter task completion times compared to Condition A (M = 2.50, SD = 1.10) and Condition B (M = 1.84, SD = 0.51). Post hoc comparisons using the Tukey HSD test showed that Condition C was significantly different from Condition A (p = .003). However, there was no significant difference between Condition C and Condition B (p = .233), nor between Condition B and Condition A (p = .134). Figure 5 illustrates a comparison of mean task completion time across movement conditions. As a robustness check, a Welch ANOVA was also conducted and remained significant, Welch’s F(2, 15.313) = 6.555, p = .009.

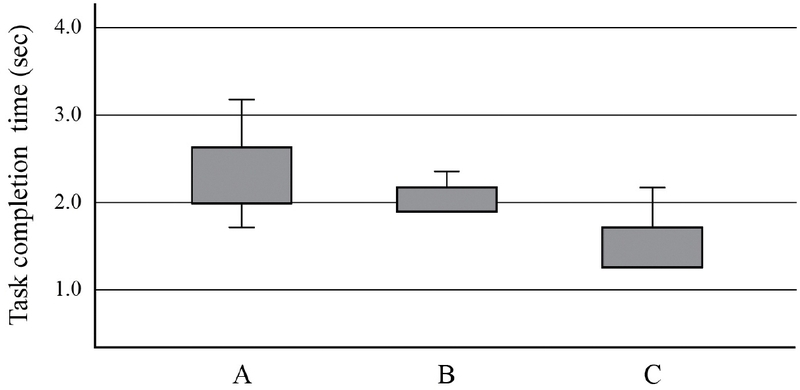

Figure 5

Comparison of mean task completion time across robot movements (A: pointing-only, B: pointing + opening and closing, C: pointing + turn-taking)

6. Discussion

This study explored abstract movements in non-humanoid robotic objects and their impact on conversational HRI. The findings revealed that: (i) all abstract movement types were significantly perceived as appropriate expressions, (ii) opening and closing movements significantly enhanced engagement and likeability, and (iii) turn-taking movements significantly improved perceived intelligence and fluency while reducing task completion time and conversational overlaps.

First, all gesture types were perceived as appropriate expressions (H1), confirming that abstract movements were interpreted as intended. This demonstrated that simple motion-based expressiveness can effectively communicate social intentions without requiring anthropomorphic features.

Second, Condition B significantly enhanced engagement (H2a) and likeability (H2b) compared to Condition A. Participants reported experiencing positive greetings, enjoyable interactions, and curiosity regarding the robot’s intentions, likely because opening and closing movements conveyed the robot’s communicative intent through clearly noticeable movements.

Third, hypotheses H3a and H3b were only partially supported. While Condition C positively affected engagement and likeability relative to Condition A, it was less effective than Condition B, which may be because the opening and closing movements had a more dynamic motion range than subtle turn-taking movements.

Conversely, hypotheses H3c and H3d were fully supported. Condition C received significantly higher ratings for perceived intelligence and fluency than other conditions. Participants reported that the robot’s feedback was clear and its movements were interactive and conversational, suggesting that Condition C provided easily understandable communicative cues. Furthermore, Condition C significantly reduced task completion time relative to Condition A, although this effect did not reach significance when compared with Condition B (H3-1). Condition C also significantly reduced conversational overlaps (H3-2). These results demonstrated that even minimal abstract movements in low-anthropomorphic robots could enhance conversational HRI. Turn-taking movements positively influenced task efficiency and reduced conversational overlaps, indicating that effective HRI does not necessarily require sophisticated humanoid features.

Beyond demonstrating statistically significant differences between conditions, the findings suggest several preliminary movement-design guidelines for low-DoF conversational robots. When the design goal is to make the beginning and end of an interaction more legible and to reinforce welcoming or closing impressions, relatively larger and clearer movements may be useful, as they can serve as cues that mark interaction boundaries and make the robot’s social availability more apparent. In contrast, when the goal is to clarify turn transition and support smoother speaking-listening exchange, smaller, shorter, and more clearly timed movements placed after a user utterance or before the robot’s next utterance may be better suited to the role of turn-taking cues. Overall, these interpretations extend the contribution of the study from reporting condition effects to offering design guidance on how minimal abstract movement may be used to organize interaction.

7. Conclusion

This study investigated how abstract movements in non-humanoid robotic objects affect user perceptions in conversational contexts. All movement types were perceived as appropriate gestures. Opening and closing movements significantly enhanced engagement and likeability, while turn-taking movements improved perceived intelligence and fluency. Additionally, turn-taking movements reduced conversational overlaps compared to both conditions and shortened task completion time compared to the pointing-only condition.

These findings demonstrated that minimal abstract movements could effectively support conversational grounding in non-humanoid robots. The exploratory movement patterns identified in this study implemented conversational cues through simple motion-based expressiveness, offering an alternative to human-mimicking approaches. They may also help develop social features in other physically constrained intelligent products, ultimately contributing to more engaging and fluent interactions in everyday contexts.

The contribution of this study lies not only in showing that minimal abstract movement can support conversational grounding, but also in clarifying how different movement types may function as distinct interaction cues in low-DoF service robots. This provides a basis for approaching robot movement design not simply in terms of increasing expressiveness, but in terms of shaping interaction in socially and interactionally meaningful ways.

Acknowledgments

This work was supported by the Ministry of Education of the Republic of Korea and the National Research Foundation of Korea (NRF-2025S1A5C2A02022408).
